Monitoring how various parts load on a website is critical for detecting performance issues. Slow-loading resources, wasteful sequences, and unsuccessful requests all have an influence on user experience and search performance. Reviewing detailed load data helps teams troubleshoot problems, prioritize critical resources, and improve overall site speed. This approach supports better decision-making during performance optimization and enables more efficient debugging of loading delays.

What is a Waterfall Chart?

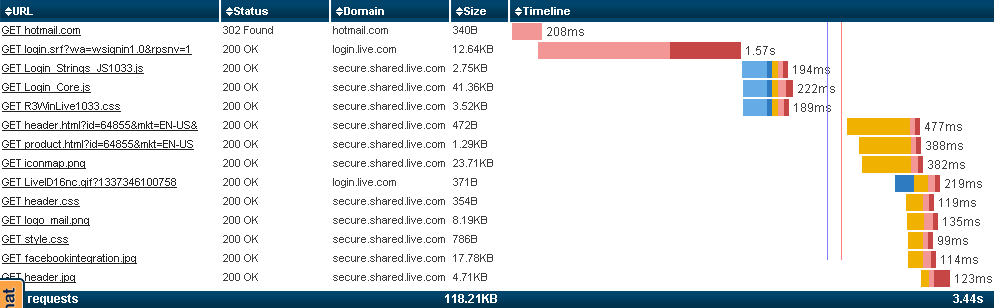

A waterfall chart is a visual tool used to analyze how individual resources on a website load over time. Each bar represents a specific request—for example, an image, script, or stylesheet—and indicates when it is made, how long it takes to complete, and how it is related to other resources in the loading sequence. Essentially, it is a timeline that illustrates what happens from the moment a user inputs your website’s URL until the moment the page is fully produced.

The chart breaks the loading process into key phases:

• DNS Lookup: Time spent converting the domain name into an IP address;
• Connection Time: Duration needed to establish a connection with the web server;
• SSL Handshake: Time required to set up a secure HTTPS connection (if applicable);
• Waiting/TTFB (Time to First Byte): Time between initiating the request and receiving the first byte of data;
• Content Download: Time taken to fully retrieve the requested resource, such as an image, script, or CSS file.

Waterfall charts help to identify performance issues and the location of loading delays or bottlenecks by displaying each of these steps for each page element. They are crucial for detecting slow-loading pages and increasing overall site speed.  Understanding how to discover and overcome performance bottlenecks is critical for keeping websites fast and dependable. Exploring the frequent reasons for these problems, such as inefficient scripts, big media files, or excessive third-party queries, can give useful guidance for increasing load speed and ensuring smoother page performance.

How Waterfall Charts Help Improve Website Performance

When it comes to improving website speed, waterfall charts are a valuable tool. They break down the entire loading process, showing exactly how and when each part of a page loads. This level of detail makes it easier to pinpoint what’s slowing things down and fix it directly. Since page speed impacts user experience, conversion rates, and search engine rankings, even small delays can make a big difference—just a one-second delay can lead to a noticeable drop in conversions.

Using waterfall charts as part of your performance monitoring process offers several practical advantages:

• Find What’s Slowing Things Down: Easily spot which files—like images, scripts, or third-party tools—are causing delays in page loading;
• Improve What Loads First: Adjust the order of loading so that important content shows up quickly, and less important items can wait;
• Cut Out What You Don’t Need: Look for any repeated or unnecessary requests and remove them to help the page load faster;
• Improve Key Performance Metrics: Use the insights to boost important factors like LCP and FID, which play a big role in SEO and user satisfaction.

Waterfall charts show you every stage of the loading process, allowing you to fine-tune your website for faster load times and more customer happiness.

Using Waterfall Charts to Troubleshoot Website Performance

While overall page load time gives a general performance snapshot, a waterfall chart breaks it down element by element, making it an essential tool for debugging.

• Analyze Individual Load Phases: Get detailed timing for each element, including DNS resolution, TCP connection, HTTPS handshake, request/response wait times, data transfer, and any timeouts. These phases are explained further in the related knowledge base article on waterfall timings;
• Track Page Load Sequence: Waterfall charts clearly show how the page loads over time, making it easy to identify elements that are loading slowly or blocking the rendering process;
• Identify Failed Resources: Easily identify unsuccessful requests. Reviewing request and response headers allows you to identify issues such as misconfigured CDN nodes, improper content delivery, and unusually delayed server responses.

With this level of data, you can quickly detect and rectify performance issues that impact the user experience.

Actionable Website Optimization Tips Using Waterfall Chart Insights

Below are key optimization strategies based on common patterns seen in waterfall charts:

Reduce DNS Lookup Time

Slow DNS lookups can delay initial connections. Switching to a faster DNS provider or leveraging a CDN can shorten this step and help users access your site faster.

Improve Time to First Byte (TTFB)

A high TTFB often points to server-side delays. Optimize backend code, reduce database query complexity, or switch to a more efficient hosting setup. For busy websites, load balancing can help distribute traffic more efficiently.

Minimize SSL Handshake Delays

Lengthy SSL handshakes can slow down secure connections. Use modern TLS protocols and optimize your SSL setup. CDNs with built-in SSL support can reduce latency, especially for global visitors.

Limit HTTP Requests

Each file requested adds to the load time. Combine CSS/JavaScript files, use image sprites, and embed small graphics using base64 to reduce total HTTP requests. Waterfall charts help pinpoint redundant or excessive requests.

Use Lazy Loading for Non-Essential Content

Delay loading images and assets that aren’t immediately visible on the screen. Lazy loading speeds up initial page rendering and improves the user’s ability to interact with key content sooner. For more insights into how loading strategies affect webpage rendering, check out this detailed article.

Compress and Optimize Images

Large images often cause major delays. Compress files without reducing quality and choose efficient formats. Use the chart to identify which images take the longest to load and optimize those first.

Prioritize Critical CSS and JavaScript

Prevent render-blocking issues by loading essential CSS/JS first and deferring the rest. Use async or defer attributes for non-critical scripts. Waterfall data reveals which files are affecting render time the most.

Frequent Web Performance Problems Spotted in Waterfall Charts and How to Resolve Them

Waterfall charts often expose underlying issues that can slow down your website. Below are some of the most common problems and practical ways to address them:

Render-Blocking Resources

JavaScript and CSS files that block rendering can delay how quickly content appears. To fix this, defer non-critical scripts or load them asynchronously to ensure faster visual rendering.

Oversized Image Files

Heavy images increase page load time. Image compression, conversion to current formats such as WebP, and lazy loading can all help to enhance efficiency without losing quality.

Too Many Redirects

Each redirect introduces additional HTTP requests. If the waterfall chart shows multiple redirect chains, adjust your URL structure to minimize them and reduce latency.

Excessive CSS or JavaScript Files

A high number of individual files creates unnecessary requests. CSS and JavaScript should be combined and minified whenever feasible to minimize load times and increase performance.

Conclusion

Waterfall charts give a straightforward look at how a website loads by showing each individual request and where delays or issues occur. They’re especially helpful for spotting common problems like slow DNS responses, oversized images, or scripts that block page rendering. With this kind of visibility, it’s much easier to pinpoint what needs fixing and make improvements that actually speed things up. For teams working to keep websites fast and running smoothly, checking waterfall charts regularly is a smart and efficient way to stay on top of performance.
